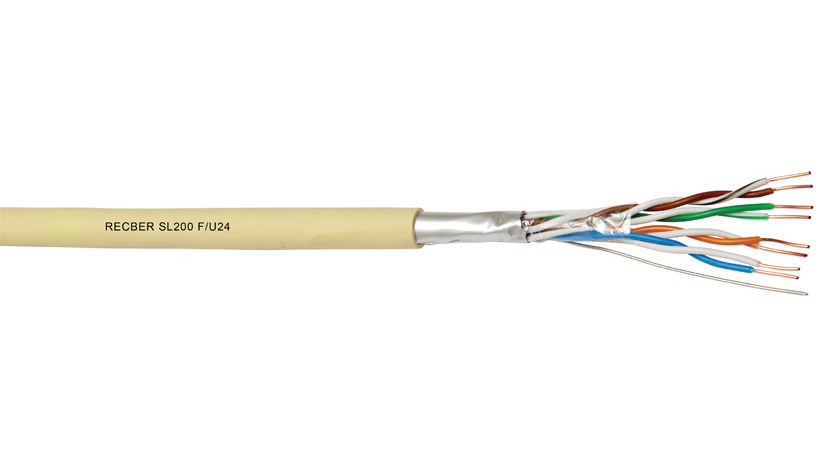

SL200 F/U24 - F/UTP Cat5e 24AWG Indoor Cable, Copper, LSZH

Brand: RECBER

This data cable range is designed for analogue and digital signal transmission in audio, video and data applications in data communication systems supporting 100 MHz, 1.0 Gbit/s 1 Gigabit Ethernet. Cables meet the requirements of structural cabling standards including ANSI EIA/TIA 568, ISO/IEC 11801 and EN 50173 Class D.

Features:

• Electrolytic copper wire: 24AWG
• Pet tape: min. 100% coverage
• Tinned copper drain wire: 26AWG
• Al-Pet tape: min. 100% coverage
• LSZH/LS0H - RAL 1015 Cream, Ø 6.0 mm
• 70°C, EN 50290-2-27
• Temperature range: fixed: -20°C ...+60°C; flexing: 0°C ...+50°C
• Tensile strength: max: 90N; min: 1000 N/10 cm
• Conductor resistance: max. 95 Ω/km

Standards

• ISO/IEC 11801 2nd ed., IEC 61156-5
• EN 50173-1, EN 50288-2-1
• ANSI EIA/TIA 568-C.2

Fire performance

• Vertical flame propagation: EN 60332-1-2 (LSZH-PVC)
• Corrosive gas: EN 60754-1/2 (LSZH)
• Smoke density: EN 61034-2 (LSZH)

EU declaration of conformity

• LVD: 2014/35/EU
• RoHS: 2011/65/E
