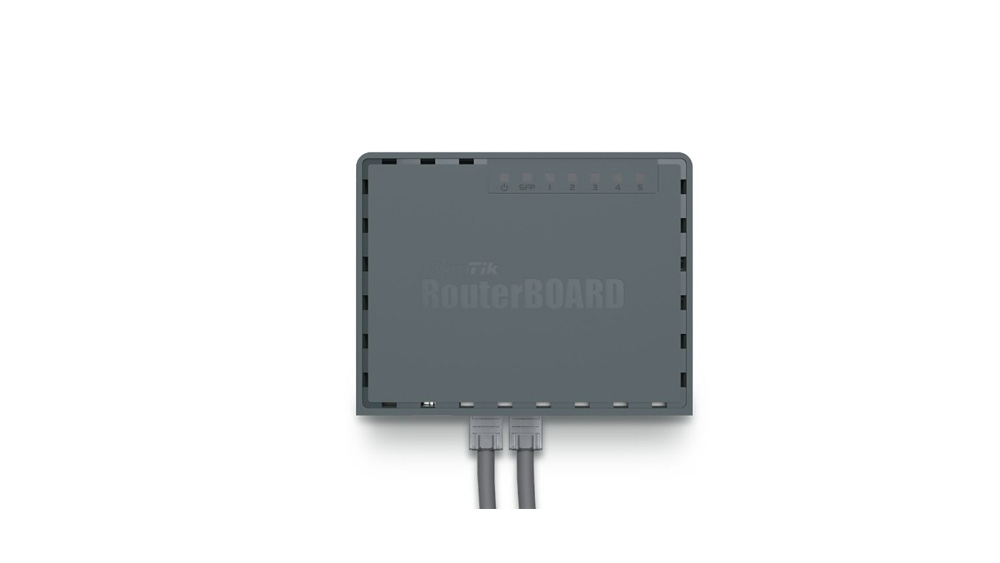

MikroTik hEX S RB760iGS - Router with 5X Gigabit and 1XSFP Ports

hEX S

260.42 GEL
Call
71487
Fina : RB760iGS (MikroTik Router hEX S)
Add to wish list Compare

Brand: Mikrotik

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. hEX S has features like SFP port and PoE output on the last port. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit.

Features:

  • Architecture: MMIPS
  • CPU: MT7621A
  • CPU core count: 2
  • CPU nominal frequency: 880 MHz
  • CPU Threads count: 4
  • Dimensions: 113 x 89 x 28 mm
  • Size of RAM: 256 MB
  • Storage size: 16 MB
  • Number of DC inputs: 2 (DC jack, PoE-IN)
  • DC jack input Voltage: 12-57 V
  • Max power consumption: 24 W
  • PoE in: 802.3af/at
  • PoE-out ports: Ether5

Specifications

  • Product code: RB760iGS
  • Architecture: MMIPS
  • CPU: MT7621A
  • CPU core count: 2
  • CPU nominal frequency: 880 MHz
  • CPU Threads count: 4
  • Dimensions: 113 x 89 x 28 mm
  • RouterOS license: 4
  • Operating System: RouterOS
  • Size of RAM: 256 MB
  • Storage size: 16 MB
  • Storage type: FLASH
  • MTBF: Approximately 100'000 hours at 25C
  • Tested ambient temperature: -40°C to 70°C
  • IPsec hardware acceleration: Yes


Powering

  • Number of DC inputs: 2 (DC jack, PoE-IN)
  • DC jack input Voltage: 12-57 V
  • Max power consumption: 24 W
  • Max power consumption without attachments: 6 W
  • FAN count: Passive
  • PoE in: 802.3af/at
  • PoE in input Voltage: 12-57 V



    PoE-out
  • PoE-out ports: Ether5
  • PoE out: Passive PoE up to 57V
  • Max out per port output (input 18-30 V): 500 mA
  • Max out per port output (input 30-57 V): 500 mA
  • Max total out (A): 500 mA



  • Ethernet: 10/100/1000 Ethernet ports
  • Fiber: SFP ports


Peripherals

  • Memory card type: microSD
  • Memory Cards: 1
  • Number of USB ports: 1
  • USB Power Reset Yes
  • USB slot type: USB type A
  • Max USB current (A): 1


Other

  • PCB temperature monitor: Yes
  • Voltage Monitor: Yes
  • Mode button: Yes


Certification & Approvals

  • Certification: CE, EAC, ROHS
  • IP: IP20

hex S (hEX__S_191220.pdf, 1,369 Kb) [Download]
