GYGXH-24OM3 - 24 Core Multi Mode OM3 Fiber Cable

GYGXH-24OM3 - 24 Core Multi Mode OM3 Fiber Cable

Features:

• Standard: Multi Mode OM3 ITU T G651 50 / 125um
• Fiber Count: 24

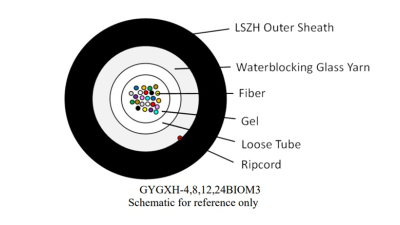

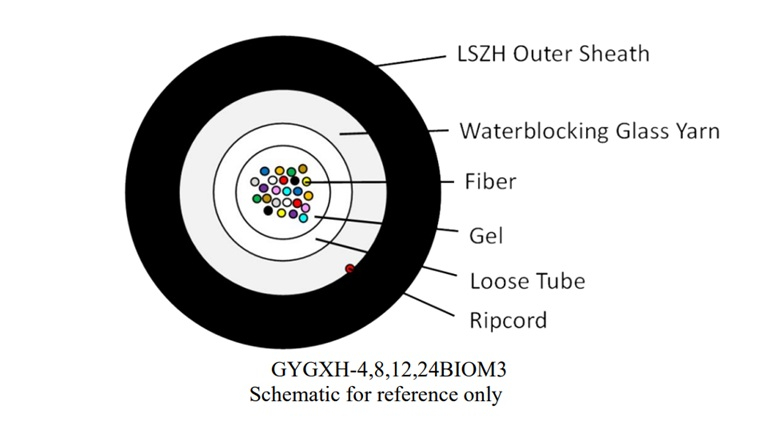

• Structure: Single Tube - with central tube
• Cable diameter(mm) Approx. : 6.2±0.5
• Peripheral strength member Material: Glass yarn
• Sheath Material: LSZH (UV resistance)
• Tensile performance(N): 1200N Short Term / 900N Long Term1000
• Crush(N/100mm): 15001000
• Attenuation(dB/km): 850nm ≤ 3.5 dB/km
• Attenuation(dB/km): 1300nm: ≤ 1.5 dB/km
• Operation temperature: -40℃～+70℃
• weight: 47 kg
